What is a Spider Boom Lift?

Table of Contents

When it comes to working at heights, safety and accessibility are paramount. Traditional scaffolding can be time-consuming to erect, and some aerial work platforms are simply too large or heavy for certain environments. This is where the spider boom lift steps in, offering a unique and highly versatile solution. If you’ve ever seen a compact, agile lift with multiple articulating legs reaching into tight spaces, you’ve likely witnessed a spider boom lift in action. But what exactly is this remarkable piece of equipment, and why is it becoming an increasingly popular choice for a wide range of tasks?

What Exactly is a Spider Boom Lift?

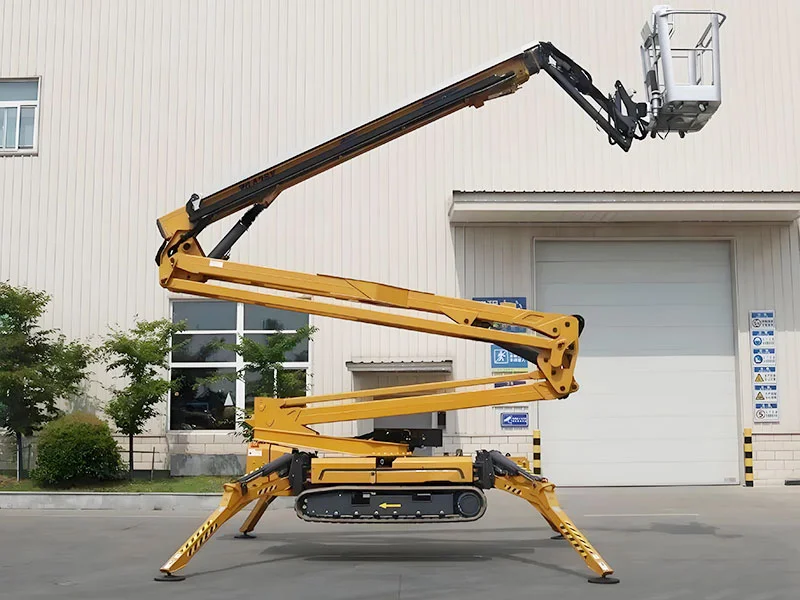

Spider-Boom-Lift

A spider boom lift, also known as a compact tracked boom lift or an atrium lift, is a specialized type of aerial work platform (AWP) characterized by its distinctive outrigger legs that resemble a spider’s legs when deployed. Unlike traditional boom lifts that often have a large, fixed base, the spider boom lift is designed for impressive maneuverability and the ability to operate in confined or sensitive areas. Its compact chassis, typically mounted on tracks, allows it to navigate through standard doorways, narrow gates, and over uneven terrain with surprising ease. Once in position, the “spider” legs extend outwards, providing a wide and stable base for safe elevation, even on slopes or delicate surfaces.

Unpacking the Key Features & Their Benefits

The design of a spider boom lift incorporates several key features that contribute to its versatility and effectiveness:

  • Compact Design: This is perhaps the most defining feature. Their narrow transport width allows them to access areas that are completely off-limits to larger equipment.
  • Tracked Undercarriage: The tracks distribute weight more evenly than wheels, reducing ground pressure and making them ideal for delicate surfaces like polished floors, landscaped areas, or sports fields. They also provide excellent traction on challenging terrain.
  • Articulating and Telescoping Boom: The multi-jointed boom offers exceptional “up and over” reach, allowing operators to navigate obstacles and position the platform precisely where needed. Many models combine both articulating and telescoping sections for maximum flexibility.
  • Spider-like Outriggers: These independently controlled hydraulic legs provide a wide, stable footprint, adapting to uneven ground and ensuring a secure base for high-level work. They also allow for self-leveling on sloped surfaces.
  • Dual Power Options: Many spider boom lift models offer hybrid power sources, combining a combustion engine (gasoline or diesel) for outdoor use with an electric motor (battery-powered) for quiet, emissions-free indoor operation. This significantly expands their usability.

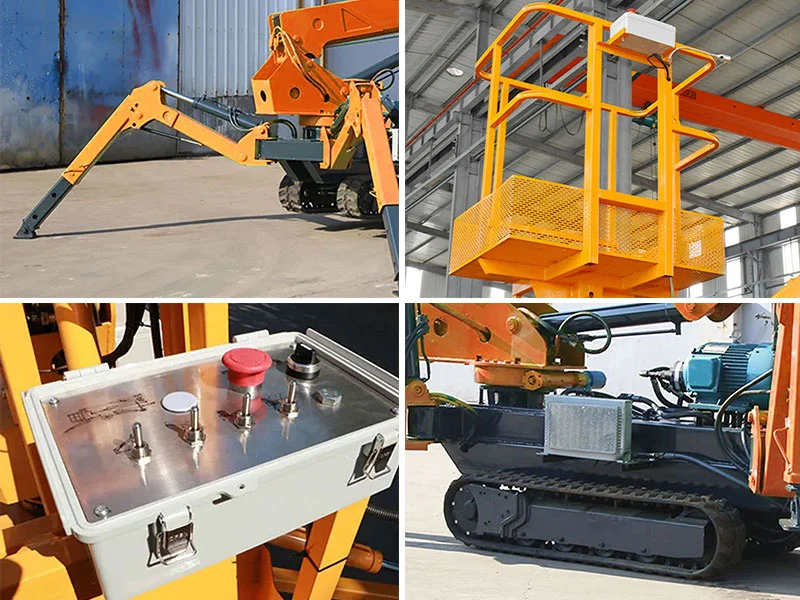

Spider-Boom-Lift-Benefits

Where Do Spider Boom Lifts Shine? Common Applications

The unique capabilities of a spider boom lift make it indispensable in a variety of industries and applications:

  • Tree Care and Arboriculture: Their ability to navigate through dense foliage and access high branches makes them perfect for pruning, tree removal, and inspection.
  • Facility Maintenance: From shopping malls and airports to universities and hospitals, a spider boom lift can access high ceilings, HVAC systems, lighting, and windows for maintenance and cleaning without disrupting operations.
  • Building Inspections and Surveys: Their precise positioning allows for detailed inspection of building facades, roofs, and intricate architectural features.
  • Construction: Ideal for interior finishing work, electrical installations, and other tasks in areas with limited access.
  • Atriums and Churches: Their compact size and ability to operate on delicate flooring make them suitable for maintenance and restoration work in large, open interior spaces.
  • Utilities: Accessing power lines, telecommunications equipment, and other elevated infrastructure.
  • Film and Event Production: Setting up lighting, cameras, and rigging in various venues.

Advantages of Choosing a Spider Boom Lift

Opting for a spider boom lift over other access equipment offers several compelling advantages:

  • Superior Access: Unmatched ability to reach confined spaces, narrow doorways, and sensitive indoor environments.
  • Minimal Ground Pressure: Ideal for delicate flooring, lawns, and areas where minimizing impact is crucial.
  • Versatility: Adaptable to a wide range of indoor and outdoor applications due to their dual power options and multi-terrain capability.
  • Portability: Many models are lightweight enough to be towed by a standard vehicle or transported in smaller trucks.
  • Enhanced Stability: The outrigger system provides exceptional stability, even on uneven or sloped surfaces, increasing safety for the operator.
  • Reduced Setup Time: Generally quicker to set up and deploy compared to scaffolding.

Important Considerations Before Buying or Renting

While a spider boom lift offers numerous benefits, there are important factors to consider:

  • Reach and Working Height: Ensure the chosen model provides the necessary vertical and horizontal reach for your specific tasks.
  • Lift Capacity: Check the maximum weight the platform can safely hold, including personnel, tools, and materials.
  • Power Source: Decide between electric, combustion, or hybrid based on your typical work environment (indoor/outdoor, noise restrictions).
  • Size and Weight: Verify the dimensions and weight for transport and accessibility through your intended work paths.
  • Terrain: Consider the type of ground you’ll be operating on and ensure the tracks are suitable.

Safety First!

Operating any aerial work platform requires strict adherence to safety protocols. When using a spider boom lift:

  • Operator Training: Ensure all operators are properly trained and certified on the specific model being used.
  • Pre-Operational Checks: Always perform thorough inspections before each use, checking hydraulics, controls, tires/tracks, and safety features.
  • Load Capacity: Never exceed the manufacturer’s rated load capacity for the platform.
  • Leveling: Always ensure the machine is properly leveled on its outriggers before extending the boom.
  • Work Area Assessment: Inspect the work area for overhead obstacles, power lines, unstable ground, and other hazards.
  • Personal Protective Equipment (PPE): Always wear appropriate PPE, including a harness and lanyard, when working in the platform.
Spider-Boom-Lift-safety-first

Conclusion

The spider boom lift stands out as a highly innovative and indispensable piece of equipment for accessing elevated work areas. Its unique combination of compact size, multi-terrain capability, precise reach, and exceptional stability makes it an ideal solution for a myriad of challenging applications. Whether you’re maintaining a sprawling facility, caring for trees, or working on intricate building structures, a spider boom lift can provide the safe, efficient, and versatile access you need to get the job done right. Understanding its features and applications will undoubtedly help you appreciate the power and agility of this remarkable machine, a true workhorse in the world of aerial access.

FAQs

Q: What is the main difference between a spider boom lift and a regular boom lift?

A: The main difference lies in their outrigger system and compact design. A spider boom lift has multiple articulating “spider” legs for stability on uneven ground and a much more compact chassis, often on tracks, allowing it to fit through narrow openings. Regular boom lifts typically have a larger, less adaptable base and are usually wheeled.

Q: Are spider boom lifts difficult to operate?

A: While they require proper training, modern spider boom lift models are designed with user-friendly controls. The key is understanding the machine’s capabilities and limitations, especially concerning its outrigger deployment and boom movements.

Q: Can a spider boom lift be used indoors and outdoors?

A: Yes, many spider boom lift models come with dual power options (combustion engine for outdoors, electric motor for indoors), making them highly versatile for both indoor and outdoor applications.

Q: How much does a spider boom lift cost?

A: The cost of a spider boom lift varies widely depending on the brand, model, working height, lift capacity, and features. They can range from tens of thousands to over a hundred thousand dollars.

Q: What are the primary safety considerations when using a spider boom lift?

A: Key safety considerations include proper operator training, daily pre-operation checks, adherence to load capacity limits, ensuring the machine is perfectly level before operation, assessing the work area for hazards, and always wearing appropriate personal protective equipment (PPE).
