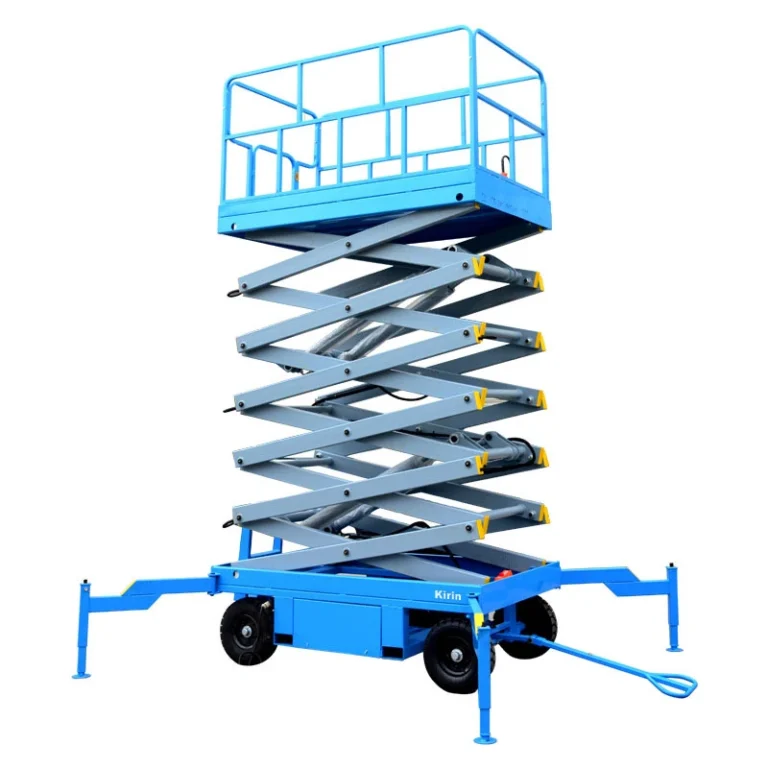

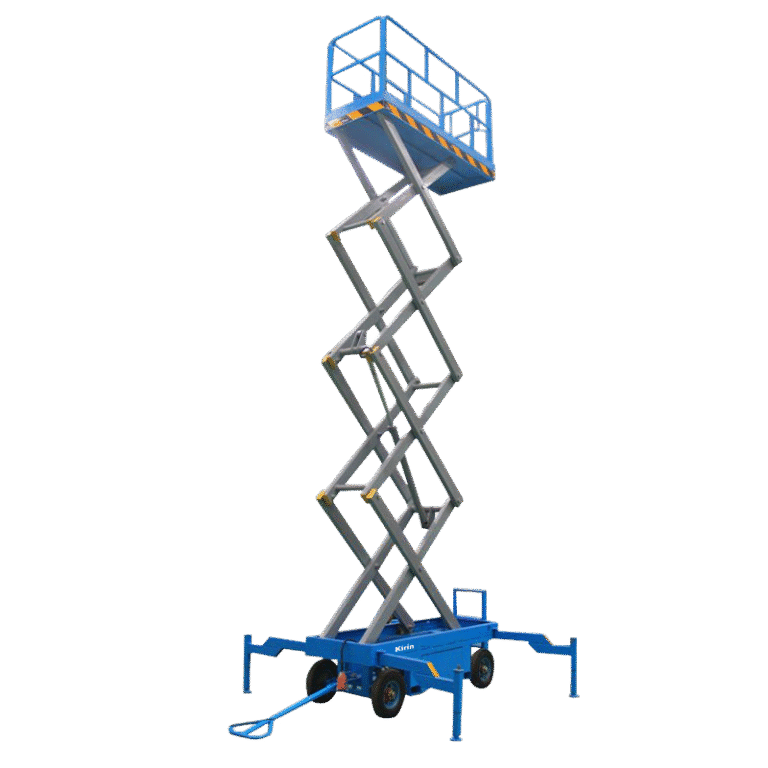

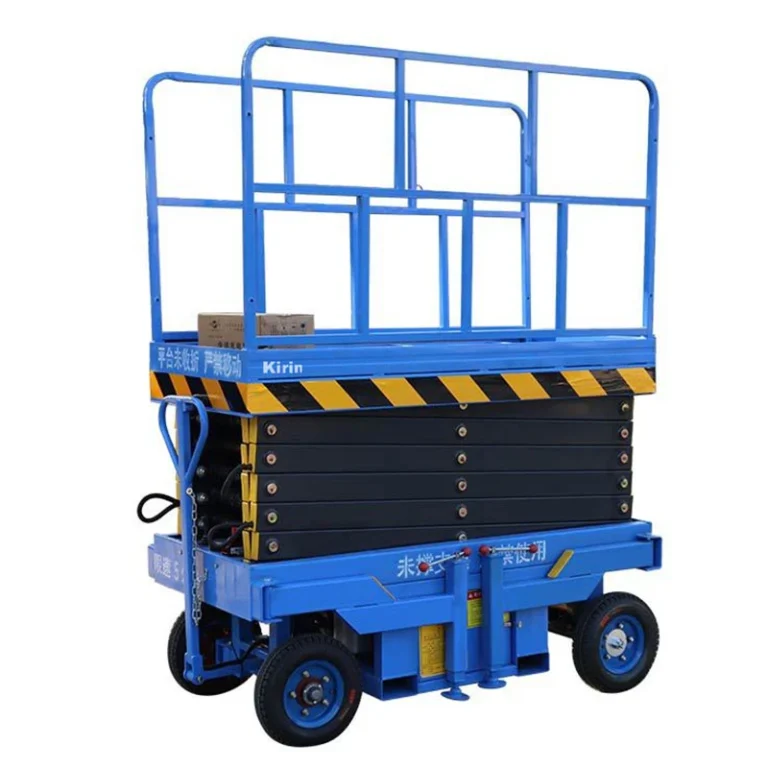

Mobile Scissor Lifts
- Load Capacity 400kg
- Length – stowed 3.02m
- Max.Working Height 16m
Mobile Scissor Lifts for Sale
Designed for maximum versatility in confined spaces, our towable scissor lift delivers professional aerial access with exceptional maneuverability. This space-saving solution excels in both indoor and outdoor environments, making it ideal for maintenance, installations, and construction projects where mobility matters. With easy towing capability and a compact footprint, operators can quickly position the lift exactly where it’s needed – whether for ceiling repairs, signage installation, or facility maintenance. The robust yet nimble design ensures safe, productive work in areas where traditional lifts can’t operate, combining the convenience of portability with reliable elevated access. Perfect for contractors and maintenance teams who need a go-anywhere work platform that’s ready when and where you need it.
| Model | Capacity | Max Platform Height | Min Platform Height | Dimensions | Outrigger open size | Motor (v/kw) | Voltage(v) | Length – stowed | Width | Height – stowed | Weight |
| Ksjy0.5-7 | 500KG | 7m | 1.2m | 2.15×1.14m | 2.13×2.89m | 220-380/2.2 | 220-380 | 2.25m | 1.3m | 2.12m | 1120KG |
| Ksjy0.5-9 | 500KG | 9m | 1.24m | 2.15×1.14m | 2.56×2.89m | 220-380/2.2 | 220-380 | 2.25m | 1.3m | 2.24m/2.37m | 1320KG |
| Ksjy0.5-11 | 500KG | 11m | 1.37m | 2.15×1.14m | 2.56×2.89m | 220-380/2.2 | 220-380 | 2.25m | 1.3m | 2.37m | 1680KG |
| Ksjy0.5-14 | 500KG | 14m | 1.83m | 2.5×1.26m | 2.56×2.89m | 220-380/3 | 220-380 | 2.58m | 1.41m | 2.98m | 2680KG |
| Ksjy0.5-12 | 500KG | 12m | 1.65m | 2.5×1.26m | 2.56×2.89m | 220-380/3 | 220-380 | 2.58m | 1.41m | 2.65m | 2040KG |
| Ksjy0.3-13 | 300KG | 12.85m | 1.49m | 2.15×1.14m | 2.13×2.89m | 220-380/2.2 | 220-380 | 2.2m | 1.3m | 2.49m | 1880KG |
| Ksjy0.4-16 | 400KG | 16m | 2.4m | 2.75×1.6m | 3.52×4.14m | 380/4 | 380 | 3.02m | 1.96m | 3.53m | 3750KG |
Main Parts of Kirinlift Mobile Scissor Lifts

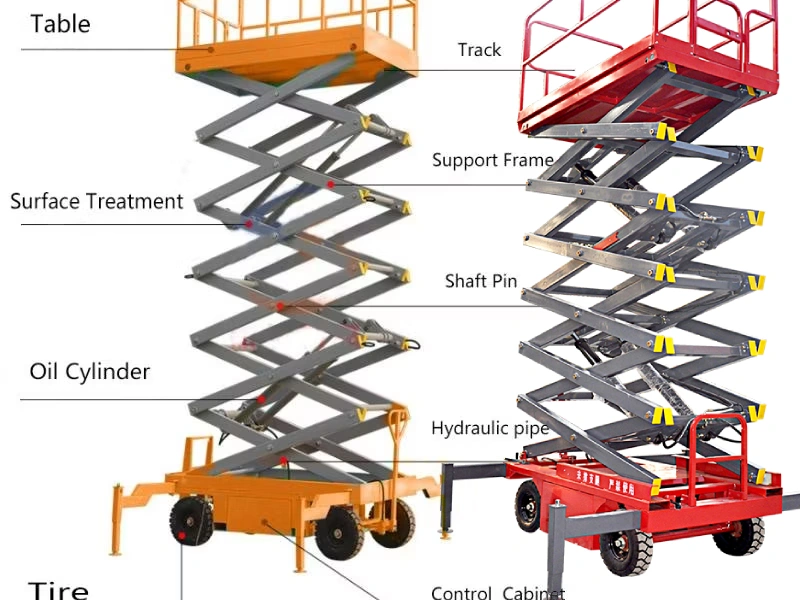

Scissor Arm Structure
The scissor arm is the core lifting mechanism of a mobile scissor lift. Made from high-strength steel, it folds and extends in a crisscross “X” pattern to raise or lower the platform. This structure ensures stability during elevation and supports heavy loads safely. Precision welding and hydraulic cylinder attachment points are essential for smooth and balanced operation. The arms must be evenly aligned and regularly inspected for wear or deformation. High-quality scissor arms reduce maintenance needs and extend the machine’s life. At our factory, we manufacture scissor arms with reinforced steel and precision-cut joints to guarantee both durability and safe lifting performance.

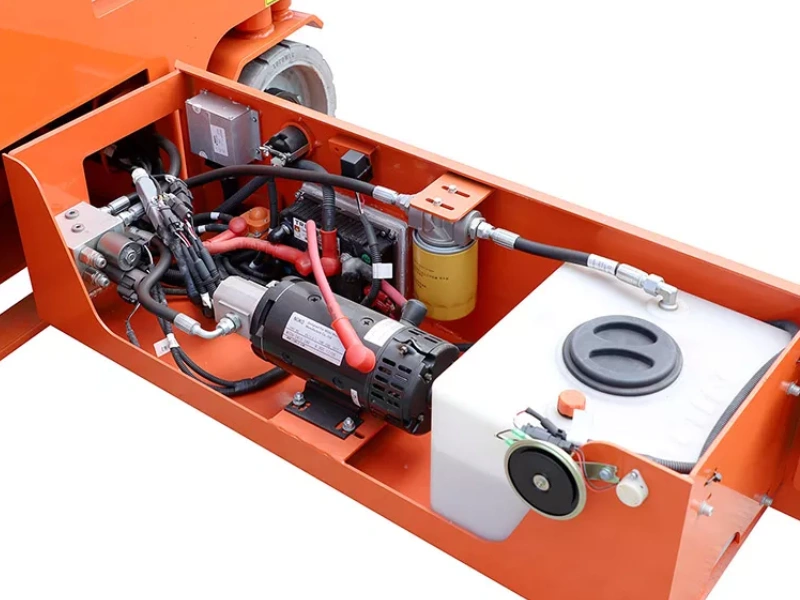

Hydraulic System
The hydraulic system powers the lifting and lowering action of the mobile scissor lift. It includes a pump, motor, hydraulic oil tank, control valves, and cylinders. When the user activates the control switch, hydraulic fluid flows into the cylinder, creating pressure that pushes the scissor arms upward. A reliable hydraulic system ensures smooth movement, accurate control, and safety under load. Overheating protection and anti-burst valves are often integrated for added safety. We use top-grade hydraulic components that comply with international standards to ensure powerful performance and low failure rates in demanding work environments.

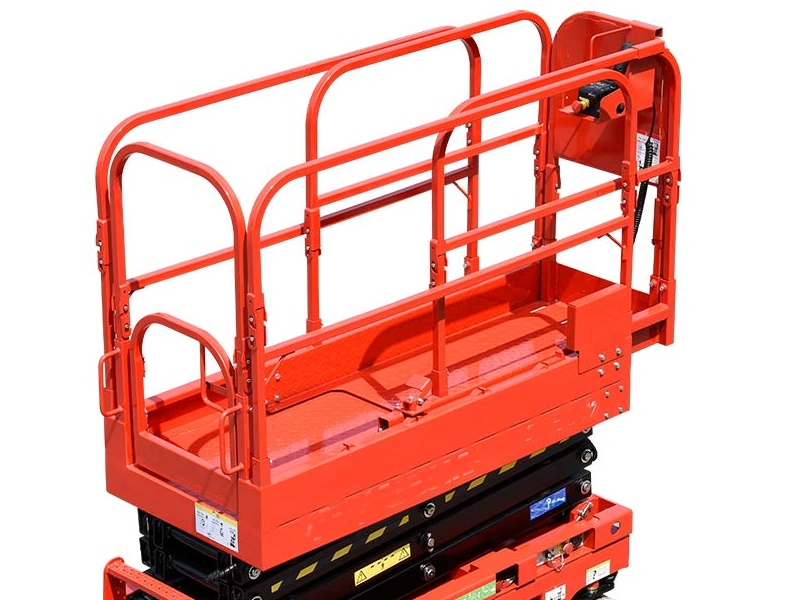

Platform
The platform is where the operator or cargo is placed during lifting. It must be strong, slip-resistant, and equipped with guardrails for safety. Most platforms have a steel or aluminum base with anti-skid surface treatment. Some models come with extendable platforms or folding rails to improve accessibility in tight workspaces. The platform is also where control panels are installed, allowing users to operate the lift from above. Our platforms are engineered to support various load capacities and are designed for comfort and security during operation. All platform materials are tested for load-bearing performance and durability.

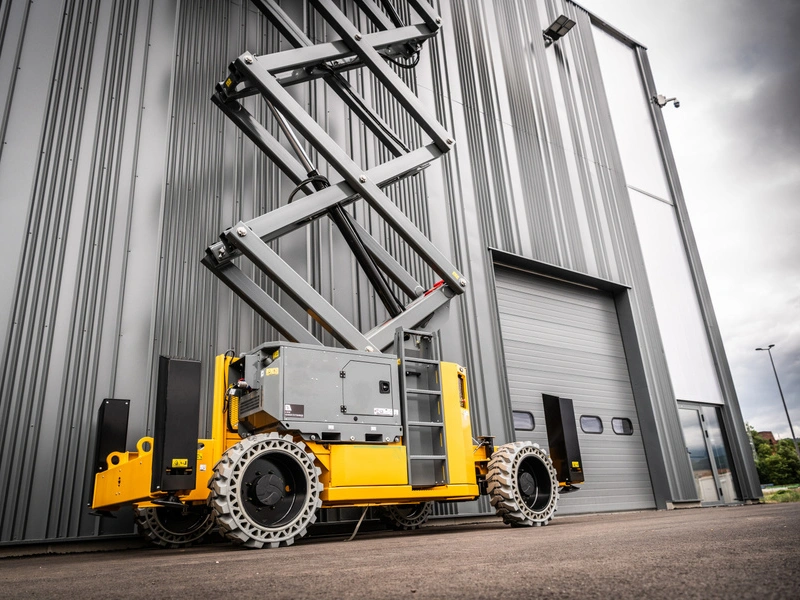

Wheelbase and Chassis
The wheelbase and chassis form the foundation of a mobile scissor lift, providing stability and mobility. This base supports the entire weight of the lift and must be strong enough to hold the unit steady while in use. Equipped with heavy-duty wheels or casters—often with locking mechanisms—the chassis allows for easy transport across worksites. Leveling jacks or stabilizers are often included to ensure safety on uneven ground. Our mobile scissor lifts feature a reinforced steel chassis designed for long-term outdoor or indoor use, with powder coating for rust resistance and reinforced wheel brackets for smoother movement and durability.
Mobile Scissor Lifts Video

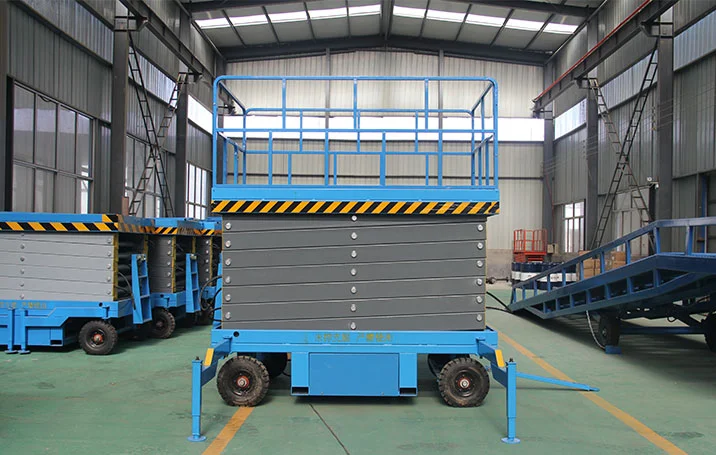

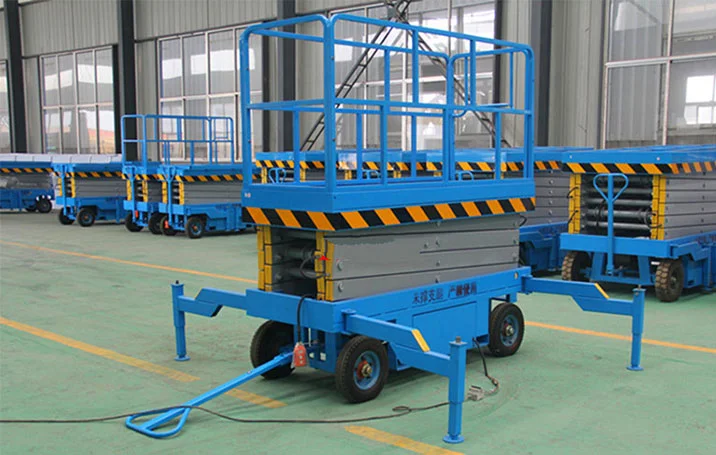

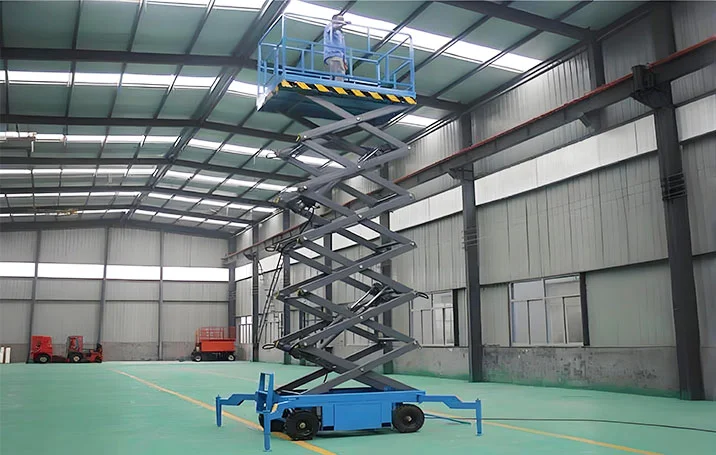

Mobile Scissor Lifts Applications
