19 ft Scissor Lift Specifications, Dimensions, Weight, Rental Price, & Sale Price

The 19 ft scissor lift is arguably the most recognizable and widely used piece of aerial work equipment in the construction, maintenance, and warehousing industries. It strikes the perfect balance between working height, platform capacity, and a compact size that allows it to easily navigate indoor spaces. If you’re planning a project that involves elevated work on flat, stable surfaces—from installing light fixtures in a mall to performing electrical maintenance in a data center—understanding the technical details of the 19 ft scissor lift is essential.

This comprehensive guide breaks down everything you need to know about the industry-standard 19 ft scissor lift, covering its core specifications, physical dimensions, total machine weight, and the crucial factors that determine its rental and sale prices.

Why the 19 ft Scissor Lift is the Industry Standard

The dominance of the 19 ft scissor lift stems from one critical factor: its maximum working height of 25 feet. This height is sufficient to reach the ceilings and infrastructure of almost all standard commercial buildings, warehouses, and many residential applications.

Most commonly, the standard model is a 19 electric scissor lift (like the Genie GS-1930 or JLG 1930ES), which is designed for slab (smooth, indoor) applications. Its electric power source is quiet, produces zero emissions, and is highly efficient, making it the preferred choice for confined indoor environments, hospitals, schools, and any space where noise and air quality are concerns. Furthermore, its narrow chassis is specifically engineered to fit through standard double-doors and navigate narrow warehouse aisles. For contractors and facilities managers, the 19 ft scissor lift isn’t just a machine; it’s the default, practical tool that meets the needs of a majority of interior elevated work.

Detailed 19 ft Scissor Lift Specifications

The specifications for a 19 ft scissor lift are remarkably consistent across major manufacturers. While minor variations exist, the core performance metrics are standardized to ensure the machine can handle its primary indoor workload effectively. These specs are vital for planning the scope of work and meeting job site safety requirements.

Here is a summary of the key performance and operational specifications for a typical 19 ft electric scissor lift:

Specification	Metric Value	Imperial Value	Explanation

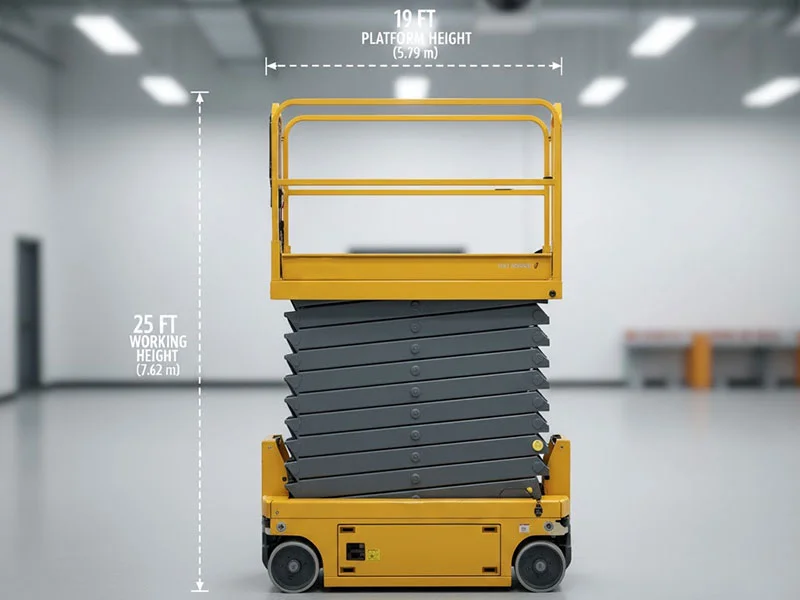

Maximum Platform Height	5.79 m	19 ft 0 in	The height of the platform floor when fully raised.
Maximum Working Height	7.79 m	25 ft 0 in	Platform Height plus an estimated $\sim$6 feet for the operator’s reach.
Platform Capacity (SWL)	227 kg – 250 kg	500 lbs – 550 lbs	The maximum weight, including personnel and tools, the main platform can safely hold.
Platform Extension Capacity	$\sim$113 kg	$\sim$250 lbs	The safe load limit for the roll-out deck extension.
Gradeability	20% – 25%	20% – 25%	The maximum slope the lift can safely climb in a stowed position.
Power Source	24V – 48V DC	Electric Battery	Ensures quiet, zero-emission operation for indoor use.
Drive Speed (Stowed)	4.8 km/h	3.0 mph	Maximum travel speed when the platform is lowered.

The most critical specification is the 500-pound platform capacity, which is typically enough for two average-sized people plus their tools and materials. Always verify the maximum capacity on the specific model you are using, and remember that safety regulations mandate keeping the platform and extension load within the specified limits.

19 ft Scissor Lift Dimensions (Stowed)

One of the defining advantages of the 19 ft scissor lift is its compact size, particularly when stowed. Its dimensions are engineered to solve a universal job site problem: fitting heavy equipment through a standard, single-leaf doorway.

The overall dimensions of a stowed 19 ft scissor lift are what make it indispensable for interior fit-out and maintenance work.

Dimension	Metric Value	Imperial Value	Key Job Site Consideration
Overall Width (Machine Width)	0.76 m – 0.81 m	30 in – 32 in	Crucial: Allows the lift to pass through a standard 36-inch single doorway.
Overall Length	1.83 m – 1.88 m	72 in – 74 in	Determines the space needed for transport and turning.
Stowed Height (Rails Folded)	1.65 m – 2.02 m	65 in – 79.6 in	Allows for easy trailering and navigating under low overhead obstructions. Note: Rails can often be folded to minimize height.
Platform Dimensions	0.76 m x 1.83 m	30 in x 72 in	Provides a stable working area for two people.
Roll-Out Deck Extension	$\sim$0.91 m	$\sim$36 in	Extends the working area, often allowing the operator to reach over an obstruction.

The narrow 30-to-32-inch width of the chassis is the true game-changer. It means a single 19 ft electric scissor lift can be used for most indoor commercial tasks without needing to dismantle doorways or resort to less efficient, manual access methods.

19 ft Scissor Lift Weight

Understanding the weight of 19 scissor lift models is critical for logistics, floor-loading analysis, and transport. The machine’s curb weight affects everything from the size of the trailer needed to tow it to whether it can be safely used on suspended slabs or weight-sensitive floors.

19 ft Scissor Lift Weight: Key Factors and Typical Range

The average 19′ scissor lift weight for a standard 19 electric scissor lift generally falls within the following range:

• Average Weight Range: 2,600 lbs to 3,255 lbs (1,180 kg to 1,477 kg).

The variation in the 19 foot scissor lift weight is primarily due to the specific manufacturer and model features:

• Manufacturer: Different designs, steel thickness, and component weights will result in slightly varied total masses.
• Electric vs. Rough Terrain (RT): While most are electric slab lifts, a rough terrain or hydraulic 19 ft scissor lift (if one exists with that specific platform height) would be significantly heavier due to larger tires, all-wheel drive systems, and a diesel/gas engine.
• Battery Type: Lifts with advanced, heavier batteries or larger battery banks for extended duty cycles will be on the higher end of the weight of 19 scissor lift range.

Practical Consideration: Floor Loading

When working on elevated floors or rooftops, the floor-loading limit (measured in pounds per square foot or PSF) is a major safety concern. The concentrated load from the four wheels of a 19 ft scissor lift must be distributed, and a professional engineer must calculate the maximum point load to ensure the slab can safely support the 19 scissor lift weight. Knowing the machine’s exact weight is the first step in this safety analysis.

19 ft Scissor Lift Rental Price

For most contractors and businesses, renting a 19 ft scissor lift is the most cost-effective solution, especially for short-term projects or variable demand. Rental rates are typically structured by day, week, or month, with significant savings for longer commitments.

Rental rates are subject to geographic location, the specific model, the supplier (national chain vs. local rental yard), and the duration of the rental.

Rental Duration	Average Price Range (USD)	Cost Savings Context
Daily	$100 to $200	Best for one-off tasks or completing a job in a single shift.
Weekly	$250 to $500	Represents a significant discount (often 50%+ less per day than the daily rate).
Monthly (4 Weeks)	$430 to $800	Provides the greatest cost efficiency for long-term projects, often making the daily rate as low as $15-$30.

Pro Tip on Rental Costs: Always inquire about a monthly rental, even if you only need the 19 ft scissor lift for two to three weeks. In many cases, the monthly rate is only slightly higher than a two-week rental, making the monthly commitment the better financial choice. Don’t forget to factor in potential delivery and pick-up fees, which can add $100 to $300 to the overall cost.

19 ft Scissor Lift Sale Price

For companies with a constant need for elevated access, purchasing a 19 ft scissor lift outright can be a wise investment. The sale price is contingent on whether you are buying new or used, the brand, and the machine’s specific features (e.g., a high-end model with AC drive systems versus a standard DC drive).

New 19 ft Scissor Lift Sale Price

A brand-new 19 ft electric scissor lift offers the latest technology, full manufacturer warranties, and zero maintenance history, providing peace of mind and long-term reliability.

• New Price Range: $10,000 to $15,000 USD
• High-End/Specialized New Models: Some advanced, high-tech, or specialized models (like all-electric drive systems or ultra-lightweight designs) can command prices reaching up to $23,000 USD or more.

Used 19 ft Scissor Lift Sale Price

The used market is robust for the 19 ft scissor lift because of its high demand and excellent durability. Prices vary significantly based on the machine’s age, total hours of operation, and its cosmetic and mechanical condition.

• Used Price Range (Good Condition,$5-10 years old): $5,000 to $9,500 USD
• Older or High-Hour Used Models: Well-maintained older units or machines with high usage hours can be found for as low as $3,500 to $5,000 USD.

When purchasing a used 19 ft scissor lift, it is crucial to review the maintenance logs, check for signs of hydraulic leaks, test all drive and lift functions, and verify the remaining life of the battery pack, as replacement can be a significant expense. The ROI (Return on Investment) is often swift for a used 19 ft scissor lift if it is used frequently, as it quickly offsets the monthly rental costs.

Kirin Scissor Lift

While the global market for the self-propelled 19 ft electric scissor lift is dominated by well-known Western brands, the mention of “Kirin” points toward the diverse and specialized aerial equipment industry, particularly in the Asian market.

Unlike the compact, mobile 19 ft scissor lift used for indoor fit-out, manufacturers like Kirin often specialize in heavy-duty, industrial-grade lifting solutions:

• Focus on Hydraulic/Goods Lifts: Kirin is known for hydraulic scissor lift tables and goods lifts designed for warehouses, fabrication workshops, and loading docks. These lifts are often stationary or semi-mobile, built for handling heavy materials (sometimes 1 to 3 tons) rather than personnel mobility.
• Customization: These lifts are frequently customized for specific material handling tasks, such as loading heavy goods onto multi-deck transport vehicles, which differentiates them from the standardized personnel-rated 19 ft scissor lift.
• Operating Height: While they do offer lifts with platform heights that meet or exceed the 19-foot mark, the overall design emphasizes static stability, high load capacity, and robust engineering for sustained, heavy-duty industrial application.

This distinction highlights an important point: the term “scissor lift” covers a wide array of equipment. The standard 19 ft scissor lift is a compact, self-propelled 19 electric scissor lift for personnel, whereas specialized manufacturers like Kirin focus on the hydraulic, high-capacity lifting apparatus used for material handling.

Conclusion: Making the Right Choice

The 19 ft scissor lift has earned its status as the industry’s workhorse for good reason. Its 25-foot working height covers the vast majority of indoor access needs, and its narrow chassis ensures maximum job site maneuverability. Whether your budget dictates a rental or a purchase, knowing the detailed specifications—from the 19 scissor lift weight of around 3,000 lbs to the critical 32-inch width—empowers you to make an informed, safe, and cost-effective decision.

By carefully considering the load capacity, the floor-loading requirements of your site, and the cost structure that best suits your timeline, you can leverage the unparalleled efficiency and reliability of the 19 ft scissor lift to ensure your project reaches new heights, safely and on budget.
